EQUOTIP BAMBINO 2 - Portable Metal Hardness Tester

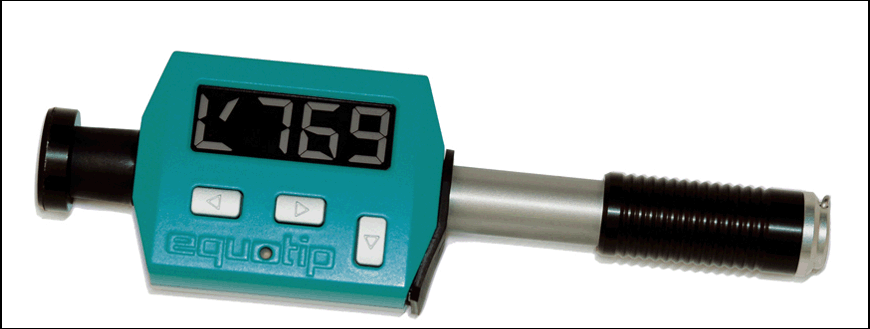

Direct and straightforward metal hardness testing – the Equotip Bambino 2 stands on its own, without separate indicating platforms and cables. The Equotip Bambino 2 is an economical and easy-to-use portable rebound tester for hardness measurements on most metals.

It combines a light and compact design and an innovative impact device D to offer an unmatched price/performance ratio.

The DL Accessory Kit is used to extend the range of applications. It allows testing in confined spaces and recessed surfaces through a long, slim testing nozzle.
Applications
  • Suitable for most metals. Also useful for curved and recessed sample surfaces.
  • Testing of metallic work pieces when the test indentation should be as small as possible, in line with non-destructive testing (NDT)
  • Determination of the hardness of pre-assembled machines or large steel and cast constructions (e.g.  in steel mills)
  • Measurement in confined spaces along process chains (e.g. in heat treatment shops)
  • Quick or manually documented acceptance tests and checks of incoming goods (e.g. from automotive sub-suppliers)
  • Off-site testing (e.g. technical goods purchasing or consulting)

Features
  • Rapid reload and trigger mechanism and automatic compensation for impact direction (360°)
  • Wide measurement range on most common hardness scales (HL, HV, HB, HRC, HRB, HS)
  • Immediate display of single readings in large bright digits + average of a measurement series
  • 2 in 1: Conveniently switch between universal Equotip D probe and slim DL nozzle (accessory)
  • Scratch-proof, hard-coated, zinc alloy housing – rugged and durable, compact in size
  • Intelligent, on/standby power switching for optimal battery charge life
  • Free firmware updates via the internet through USB

Product Variation
  • The DL Accessory Kit expands the application range of the Equotip Bambino 2 by extending its reach to confined spaces through a long, slim test nozzle.
  • Proceq offers a wide selection of support rings to permit testing on a great variety of surface geometries.
  • Proceq also offers an advanced version of the Bambino 2, the Equotip Piccolo 2, which in addition offers measurement statistics, additional conversions, data storage and data management on a PC.

Warranties
  • Standard 2-year limited warranty on electronic indicating units
  • Optional extended warranty periods up to 3 years

Standardization
  • ASTM A956 (2006)
    DIN 50156 (2007)
  • DGZfP Guideline MC 1 (2008)
  • VDI-/VDE-Richtlinie 2616, Veröffentlichung 1 (2002)
  • ISO 18265 (2003)
  • GB/T 17394 (1998)
  • JB/T 9378 (2001)
  • JJG 747 (1999)
  • CNAL T0299 (2008)
  • JIS B7731 (2000)

 Technical Data
 Testing method  Leeb rebound
 Impact energy  11.5 Nmm (impact body Equotip D)
 11.2 Nmm (impact body Equotip DL)
 Spherical test tip  Tungsten carbide, 3 mm diameter
 Minimum radius of surface  curvature  10 mm
 Testing range  150-950 HLD
 250-970 HLDL
 Resolution  1 HL; 1 HV; 1 HB; 0,1 HRC; 0,1 HRB; 0,1 HS
 Accuracy  ± 4 HL (0,5 % bei 800 HL)
 Dimensions  147,5 x 44 x 20 mm
 Weight  110 g
 Housing material  scratch proofed anodized aluminum
 Display  large, high contrast LCD
 Internal data storage  not applicable
 Communication  not applicable
 PC application  not applicable
 Battery  Lithion, charges through device USB port, over ~ 20,000 impacts on a full charge, intelligent  wake-up/sleep mode
 Operating temperature  -10 to +60 °C
 Humidity  max. 90 %
