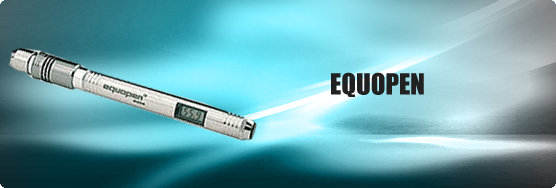

EQUOPEN |
|
| |
 |
|
|
|
| The lightweight portable hardness tester Equopen offers a revolutionary pen-like design which makes this instrument ideal for mobile, periodic use on iron-based metallic materials where fast and accurate hardness readings are essential. |
| The compact Equopen permits a simple single-hand operation without the need to carry along any cables or other accessories. |
| Features |
| Self-contained and light-weigh |
| Offers testing with minimum surface destruction |
| Test minimum surface layer thicknesses down to 0.7 mm (0.28 in.) |
|
|
|
|
|
|
|
|
|
| Displays results directly in Rockwell C scale (HRC) |
| Large measurement range (20 to 70 HRC) |
| Automatic on/off |
| |
| Applications |
|
- Suitable for measurements on steel and cast steel, cold work tool steel, stainless steel and high-temperature resistant steel
- Ideal for consultants, machinists, quality and production personnel with periodic requirements for quick and easy hardness measurements in HRC
- Appropriate for heavy or already installed test pieces
|
| |
| Technical Data |
| Testing method |
special variation of the rebound method |
| Impact direction |
down only, up to a ± 30° inclination from vertical |
| Impact energy |
6 Nmm |
| Spherical test tip |
hard metal, 2.5 mm (0.098 in.) diameter |
| Testing range |
20 - 70 HRC |
| Resolution |
0.1 HRC |
| Accuracy |
± 1 HRC |
| Dimensions |
12 mm (0.475 in.) diameter, 140 mm (5.512 in.) length |
| Weight |
36 g (1.27 oz.) |
| Housing material |
stainless steel |
| Display |
small LCD display |
| Internal data storage |
N/A |
| Communication |
N/A |
| PC application |
N/A |
| Battery |
Two 1.5V button cell batteries, lasting for ~ 130 h on continuous use, display flashing when batteries are low |
| Operating temperature |
10 °C to 30 °C (50 °F to 86 °F) |
|
| |
|
|
|
