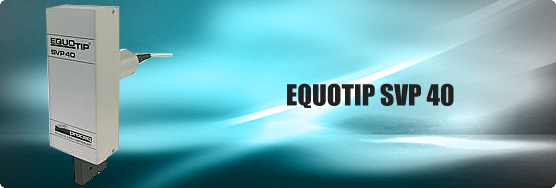

SVP 40

The portable wedge seat tester Equotip SVP 40 allows the rapid checking and evaluation of the wedging of stator windings, i.e. of the seating and regularity. The tighter the fit of the wedging, the higher the test result.
The Equotip SVP 40 is a special semi-automatic impact device variation based on the Equotip rebound principle widely used in the hardness measuring sector.
Features
The large, easy-to-read LCD display with adjustable contrast and backlight shows the Leeb result as well as a column graph of the value distribution
Intuitive menu structure controlled by tactile membrane device buttons
User profiles can be individually adapted to enable the quick change of all settings
Communication with PC or printing of data directly via the USB, Ethernet or RS 232 interfaces.

Applications
  • Rapid checking and evaluation of the wedging of stator and other layer windings
  • Regularity of the rebound resistance
  • Semi-automatic hardness testing

Warranties
  • Standard 2-year limited warranty on electronic indicating units
  • Optional extended warranty periods up to 3 years

Technical Data

 Equotip unit incl. probe SVP 40
 Testing method  Leeb rebound, semi-automatic test
 Duration of testing cycle  < 2 sec
 Resolution  1 HL
 Accuracy  ± 4 HL (0.5% at 800 HL)
 Probe SVP 40
 Dimensions  55 x 75 x 220 mm (2.2 x 2.95 x 8.65 in.)
 Weight  1040 g
 Power supply  90/260 VAC / 24/9 VDC
 Impact energy  28 Nmm (Equotip SVP 40 probe)
 Impact body  DD+35
 Spherical test tip  Tungsten carbide, 3 mm diameter
