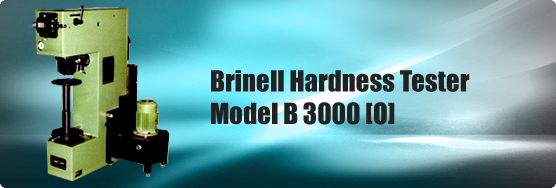

Brinell Hardness Tester Model B 3000 [O] |
|
| |
 |
|
|
| Basic machine design & operation similar to B-3000 (H) . In addition ‘optical device’ with 14 x magnification provided in front to project dia of ball impression on glass screen with a micrometer measuring system with 0.01mm accuracy. The indentor swivels & projects dia of ball impression immediately after unloading operation which avoids additional time for measurement of ball impression |
|
| SAROJ Hardness Testers, Model B-3000 (H) & Model 3000 (O) are precision engineered confirming to IS : 22281 – 1968, BS : 240 and ASTM : E 10, however B-3000 (H) & B-3000 (O) are most suitable for production testing. These machines are designed to measure hardness of castings, forgings, other metals and alloys of all kinds, hard or soft, whether flat, round or irregular in shape. |
|
|
|
|
|
|
TECHNICAL DATA |
|
| MODEL |
B - 3000 [ O ] |
| |
sss |
| Loads kgf |
250 to 3000 in stages of 250 |
| Initial Load kgf |
Nil |
| Max. test height mm |
380 |
| Dept of throat mm |
200 |
max. depth of elevating screw
below base(approx. ) mm |
180 |
| Machine height ( approx ) mm |
1185 |
| Net Wight ( approx ) kg. |
500 |
| Drive motor HP |
0.33 |
| mains supply V/cy/ph |
415 / 50 / 3 |
| Optical Device |
Direct reading optical device with
14 x magnification. |
|
| |
| STANDARD ACCESSORIES |
| |
| MODEL |
B - 3000 ( O ) |
| Testing Table 200mm dia |
1 pc. |
| Testing table 70mm dia with 'V' groove for round jobs 10 to 80mm dia. |
1 pc. |
| Ball holder 5mm |
1 pc. |
| Ball holder 10mm |
1 pc. |
| Test Block HB-5/750 |
1 pc. |
| Test Block HB-10/3000 |
1 pc. |
| Brinell Microscope |
NIL |
| Allen Spanner |
4 pcs. |
| Telescopic Cover for elevating screw protection. |
1 Set |
| Instruction manual |
1 Book |
|
| |
|
|
|
|
|
|
