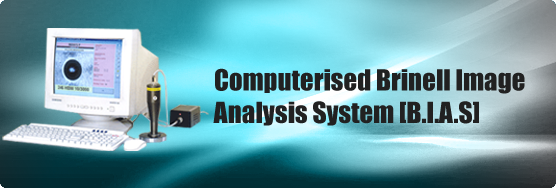

Computerised Brinell Image Analysis System [B.I.A.S]

'BIAS' Hand held unit with
PC based window operating
system
? The B.I.A.S virtually eliminates operator influence
It is found that measuring Brinell indentations can result in measurement errors between operators. This B.I.A.S. can virtually eliminate operator infulance on test result.

? Just place and click! Operating B.I.A.S is easy
With this handly instrument entire testsequence is simple. Place the scan hand on the work piece on 'Auto' in tool bar on computer screen. The B.I.A.S. automatically measures the diameter of indentation with resolution of 0.01mm and display Brinell value with doameter measurement. All data storage functions are automatically performed according to batch parameters.
'BIAS' Hand held unit
? The B.I.A.S. can be configured to meet your needs

An unlimited number of batches can be created each with its own test parameters and certificates. The operator can select test load and indentor size with arty name, address, certificate no. date batch no. and description, high and low limits for readingd etc. The previous batches can be reopened for viewing and address change etc.

The B.I.A.S. has built in statistical capabilities with graph and certificate for report generation and printing. It includes frequency distribution and variation graphs.

The systems includes calibration and check facilities to calibrate the systems and for checking of calibration. This eliminates any systems error in measurement.

Indentation View Result View

THE SOFTWARE INCLUDES
1) Facility for Auto / semi Auto / Manual modes of operation.
2) Well managed database saves readings w.r.t. batch and certificate.
3) Report generation in the form of certificate and graph as per customer requirements.
4) Facility for calibration and check of calibration.

Specification :
The range of Measurement is from 1mm to 6 mm of diameter with Resolution of 0.01mm.

Applications :
1. To measure Brinell Hardness directly on machine where presently Brinell-Microscope is used.This avoids eye straining of operator on producing testing. In addition it gives far better repeated accuracy. High-low limits selections enables operator easy acceptance / rejection of components.
2. Easy to transport anywhere and handy for use with easy setup.

Scope of Supply
1) One hand held unit containing CCD Camera, optics nad illumination systems with connecting     cable.
2) PCI Video capture Card with drive software.
3) Brinell Image Analysis System Software.
4) PC and windows 98/98SE operating systems is to be procured by customer.

Also Availabe
1) Computerised Brinell Hardness Tester ( B 3000 PC )
2) Computerised fullu automatic Brinell Hardness Tester ( B 3000 PC FA )
