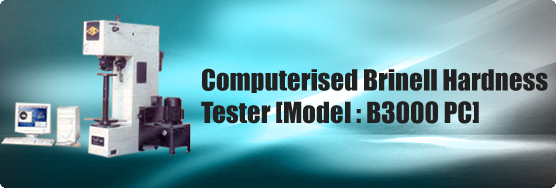

Computerised Brinell Hardness Tester [Model : B3000 PC] |
|
|
|
FEATURES :
|
Fully Computerised (PC Based) Brinell Hardness Tester. |
Direct and accurate measurement of Brinell Hardness Number using "State of Art" image
processing technology.
|
'Wide testing range' : from soft metal such as lead up to medium hardened steels.
|
High accuracy and repeatability of measurement at all loads.
|
Faster measurement yielding to higher productivity. |
Hydraulic loading and unloading cycle. |
Advanced Window based software. |
|
|
|
Latest GUI Features : |
User friendly software with all help file and Window Features. |
Online indentation setting and focusing on PC monitor. |
Advance image processing : Algorithms implemented for precise calculation of hardness numbers with various options to cover all ranges of specimen. |
|
Batch file Processing :
|
Option for data/storage and reports generation. |
|
Statistical Evaluation
Software foe calculating standard deviation, mode medium, histogram etc. |
|
Wide options in calibration mode.
|
Extendibility for future advanced image processing analysis, requirements. |
|
'FIE' Computerised Brinell Hardness Tester is a simpleand a accurate means to produce automatically measures the ball ondentation give Brinell hardness number.
These testers are suitable for measuring the hardness of metallic parts with wide leasting range - from soft to hard, and their accurate results are widely acclaimed.
These testers strictly confirm to IS : 2281, BS : 10003-2 and ASTM E-10 |
|
CONSTRUCTION : |
The robust machine frame is designed to accommodate the high precision loading system and an optical device with CCD camera. Specimen is placed on a testing table. The test cycle is semi automatic. The accurate load is applied on a ball indentor by means of a lever and weights. After a specific lapse of time. The load is removed. The image is digitized using a CCD camera fitted on the optical device and is captured by the PC. The diameter if the indentation are directly measured by Pc to give the Brinell Hardness Number directly. |
|
|
TECHNICAL DATA : |
|
Total Load |
kgf |
500 to 3000 in stages of 250 kgf |
Magnification of objectives |
- |
2x |
Max. Test Height |
mm |
410 |
Scale least count |
mm |
0.01 |
Throat depth |
mm |
200 |
Machine Dimension (Approx.) |
mm |
L 995 x W 400 x H 1178 |
Weight (Approx.) |
mm |
450 |
Power Supply |
V/Cy/Ph |
415/50/3 |
Measurement Range |
mm |
1-6 |
|
|
|
STANDARD ACCESSORIES : |
|
Testing table 200 mm dia |
1 PC. |
Testing table 70 mm dia with "V" groove for
round jobs 10 to 80 mm dia. |
1 PC. |
Ball holder 5 mm |
1 PC. |
Ball Holder 10 mm |
1 PC. |
Test Block HB-5/750 |
1 PC. |
Test Block HB-10/3000 |
1 PC. |
Allen Spanner |
4 PCS. |
Telescopic Cover for elevating screw protection |
1 SET. |
Electric Card |
1 PC. |
Instruction manual |
1 BOOK |
|
|
Number of additional accessories are available ex-stock, Accessories against special requirement offered on request.
Due to constant Research & Development, specifications & features are subject to change without notice. |
|
