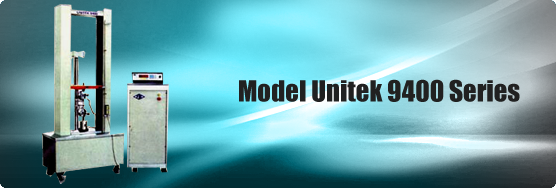

'FIE' Universal Testing Machine series Unitek 9400 are microprocessor based electromechanical machines with Servo drive designed for testing & studying mechanical behavior of various materials like metals, polymers, elastomers etc. These machines offer good built in features to offer excellent stand alone performance for standard tests & great flexibility for
complex analysis. These machines confirm to IS, BS & ASTM standards.
Main Features
• Precision DC servo motor & Drive with ball lead screw given an advanced drive systems with 1 to 1000 standard speed range.
• Speed selection through Data entry or variable speed through potentiometer.
• Facility for mounting different load cells & clamping devices to suit different tests & materials such as thin wires, metalsheets, fiberglass, leathers, springs, cardboards etc.
• Built-in parallel interface to connect Dot matrix printer for data & curve print-out. Safety interlock for overload & limit switch sensing to ensure protection during test.
• Universal applications in R & D, education, quality control & production for test like tensile, compression, bending etc.
Electronic Control Panel (Series Universal 2001)
• Microprocessor based panel incorporating state of art technology with following features.
• Front panel membrane type keyboard for machine operation with numeric keys for data entry.
• 7 sigment display.
• Auto load cell identification.
• Data entry with numeric keyboard of test parameters including speeds, rupture % peak, preload, modulus data, test data, specimen data etc.
• 20 input data set storage, 50 result storage. maintains data & results during power off.
• Batch test facility for generating batch & statistics result. Using same data set.
• Optional remote to ease specimen loading/unloading.
• RS232C serial port. Optional windows based software a for.........
• On line graph on PC.- Data analysis, statistics with point tracing, superimposing graphs to
compare with standard, zooming graph etc.
Printer port for printer interface with
• Graph & result printout.
• Test certificate printout.
• Batch certificate printout.
• Simple statistics printout.
Optional accessories
FIE offers wide range of optional accessories along with Unitek 9400 machines to cover
almost every material test requirement.
Loaded Cells
FIE offers Strain gauge type Universal load cells in different capacities in the following nominal ranges :
100N, 250N, 500N, 1 kN, 2.5 kN, 5 kN, 10kN, 25kN, 50kN, 100kN Load cells of different capacity can be offered as per customers requirements.
Grip & Clamping Device
A wide range of grips are available from FIE such as
• Wedge type grips for flat & round specmens with different inserts.
• Vise type grips.
• Single threaded grips
• Pneumatic grips
• Compression plates
• Bending fixtures
• Shearing attachment
Extensometers :
Electronic analogue extensometers are offered along with interface card on the control panel to measure extension
• Model 1 : EE2 - STRAIN GAUGE (with 1 micron resolution)
• Model2 : LTE800-DIGITALTYPE(withlOmicronresolution)
• SERIAL COMMUNICATION & SOFTWARE PACKAGE ON PC
The Universal 2001 series control panel can be hoked to any PC using RS-232 communication
port. FIE offers different window based software packages with real time graph on PC to enable the user to effective evaluate different parameters.
The features include :
• Real time graph, User friendly software.
• Extensive graphics on screen for curve plotting, magnification and zooming.
• Software features includes Graph comparison, point tracing facility. Different units selection for load & displacement.
• Statistical evaluation with water fall dig., Mean deviation, frequency distribution, Skew dig., Histogram. Also calculates
max. value, min. value, mean value, Variance, Standard Deviation. ( Other statistical parameters on request ). Selectable batch & statistical printouts.
• Evaluation of wide range of user selectable parameters such as % elongation, % reduction in area, young's modules, yield stress, proof stress etc.
• Software packages for Shear, Bend, Torsion, Rubber, Testing etc.
• Customer built application software to suit customer requirements.
